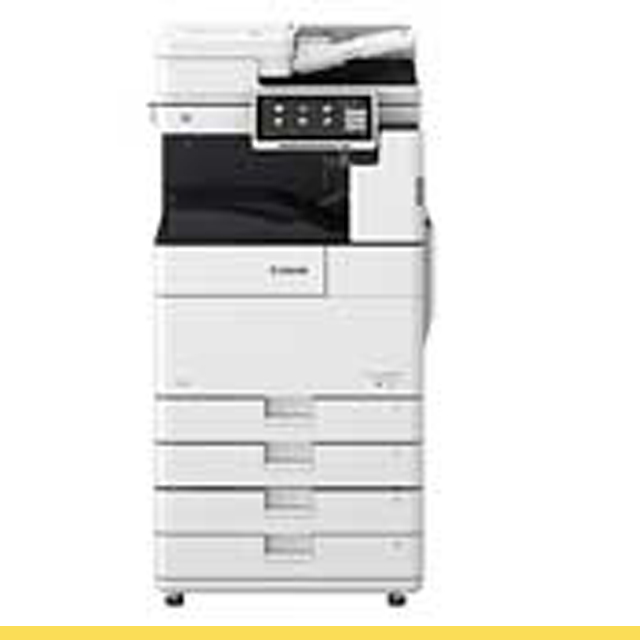

Canon printer ir 2630i mfp mono

Main Unit
Machine type
A3 Monochrome Laser Multifunctional

Core functions
Print, Copy, Scan, Send and Optional Fax

Processor
Canon Dual Custom Processor (Shared)

Control Panel
Standard: 17.8 cm/7″ TFT LCD WSVGA Colour Touch panel

Memory
Standard: 2.0GB RAM

Storage
Standard: 64GB eMMC (available space 30GB)

Interface Connection

NETWORK
– Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
OTHERS
– Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1

Paper Supply Capacity (A4, 80 gsm)

Standard: 1,200 sheets
Maximum: 2,300 sheets (with Cassette Feeding Unit-AN1)

Paper Output Capacity (A4, 80 gsm)
CANON IMAGERUNNER 2630I MULTIFUNCTION PRINTER + DADF-AZ1 DOCUMENT FEEDER

Standard: 250 sheets
Maximum: 545 sheets (with Inner Finisher-J1)

Finishing capabilities

Standard model: Collate, Group
With Inner Finisher-J1: Collate, Group, Offset, Staple-Free Staple, Staple on Demand

Supported media types

Paper Cassette (1/2):
Thin, Plain, Thick, Colour, Recycled, Pre-punched
Multi-purpose Tray:
Thin, Plain, Thick, Colour, Recycled, Pre-punched, Transparency, Tracing*, Label, Bond, Envelope
*Some types of tracing paper cannot be used.

Supported media sizes

Upper Cassette 1:
Standard size: A4, A4R, A5R, B4, B5, B5R
Custom size: Min. 139.7 x 182.0 mm up to 297.0 x 390.0 mm
Lower Cassette 2:
Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Custom size: Min. 139.7 x 182.0 mm up to 297.0 x 431.8 mm
Multi-purpose tray:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelopes [No. 10 (COM 10), Monarch, ISO-C5, DL]
Custom Size/Free Size: Min. 98.0 x 148.0 to 297.0 x 431.8 mm
CANON IMAGERUNNER 2630I MULTIFUNCTION PRINTER + DADF-AZ1 DOCUMENT FEEDER

Supported media weights

Paper Cassettes (1/2): 60 to 220 gsm
Multi-purpose Tray: 52 to 220 gsm (Thin: vertical grain paper feed only: 52 to 59 gsm)
Duplex: 60 to 105 gsm

Warm-up Time (With Quick Start Up Mode ON)

From Power On: 12 seconds or less *
* Time from device power-on in Quick Start mode, until copy ready (not print reservation)
From Sleep Mode: 10 seconds or less
4 seconds or less*
*Time from device power-on to when key operations can be performed on the touch panel display.

Dimensions (W x D x H)

iR 2645i: 586 x 709 x 926 mm
iR 2630i: 586 x 713 x 912 mm
iR 2625i: 586 x 713 x 912 mm (with DADF-AZ1)
586 x 700 x 818 mm (with Platen cover Type Z)

Installation Space (W x D)

iR 2645i: 1363 x 1269 mm*
iR 2630i: 1363 x 1273 mm*
iR 2625i: 1363 x 1273 mm (with DADF-AZ1)*
1363 x 1260 mm (with Platen Cover type Z)*
*with Cassette open + 100 mm gap around the main body

Weight

iR 2645i: Approx. 75.5 kg without toner
iR 2630i: Approx. 73.6 kg without toner
iR 2625i: Approx. 73.6 kg without toner (with DADF-AZ1)
Approx. 66.8 kg without toner (with Platen cover type Z)
CANON IMAGERUNNER 2630I MULTIFUNCTION PRINTER + DADF-AZ1 DOCUMENT FEEDER

Print Specifications
Print Speed (BW)

iR 2645i:
45 ppm (A4), 22 ppm (A3), 32 ppm (A4R), 20ppm (A5R)
iR 2630i:
30 ppm (A4), 15 ppm (A3), 21 ppm (A4R), 17 ppm (A5R)
iR 2625i:
25 ppm (A4), 15 ppm (A3), 17 ppm (A4R), 17 ppm (A5R)

Print Resolution (dpi)
1,200 x 1,200

Page description languages

Standard: UFR II, PCL 6
Optional: Genuine Adobe PostScript Level 3

Direct Print

Direct printing available from USB memory and Remote UI
Supported file types: PDF, EPS (only from Remote UI), TIFF, JPEG and XPS

Printing from mobile and cloud

AirPrint, Mopria, Google Cloud Print, Canon PRINT
Business and uniFLOW Online
A range of software solutions is available to provide printing from mobile devices and cloud-based services depending on your requirements.
Please contact your sales representative for further information

Fonts

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*1 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*2
PS fonts: 136 Roman
*1 Requires optional PCL International Font Set-A1
*2 Requires optional Barcode Printing Kit-D1

Print Features
Suspend Job Timeout, Profile Settings, Secure Print, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Toner Reduction, Poster Printing, Forced Hold Printing

Operating System

UFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.9 or later)
PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/ Server 2019
PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016/ Server 2019, MAC OS X (10.9 or later)
PPD: Windows® 7/8.1/10, MAC OS X (10.9 or later)

Copy Specifications
Copy Speed

iR 2645i:
45 ppm (A4), 22 ppm (A3), 32 ppm (A4R), 20ppm (A5R)
iR 2630i:
30 ppm (A4), 15 ppm (A3), 21 ppm (A4R), 17 ppm (A5R)
iR 2625i:
25 ppm (A4), 15 ppm (A3), 17 ppm (A4R), 17 ppm (A5R)

First Copy Out Time (A4)

iR 2645i: Approx. 3.9 seconds or less
iR 2630i/2625i: Approx. 5.9 seconds or less

Copy resolution (dpi)

Reading: 600 × 600
Printing: Up to 1,200 x 1,200

Multiple Copies
Up to 9,999 copies

Copy Density
Automatic or Manual (9 Levels)

Magnification
25% – 400% (1% Increments)

Preset Reductions
25%, 50%, 61%, 70%, 81%, 86%

Preset Enlargements
115%, 122%, 141%, 200%, 400%

Basic Copy Features
Preset R/E Ratios by Area, Paper Setting, Previous Setting, Favourite Setting, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel

Special Copy Features
Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Different Size Originals, Density Adjustment, Original Type Selection, Sharpness, Erase Frame, Shift, Gutter, Job Done Notice, Copy ID Card, Free Size Original

Scan Specifications
Selectable type

iR2645i: Standard Document Feeder (DADF-BA1)
iR2630i: Standard Document Feeder (DADF-AZ1)
iR2625i: Optional Document Feeder (DADF-AZ1) or Platen Cover Type Z

Document Feeder Paper Capacity (80 gsm)

DADF-BA1: 100 Sheets
DADF-AZ1: 50 Sheets

Acceptable Originals and weights

Platen (DADF-BA1):
Sheet, Book, 3-Dimensional Objects
Platen (DADF-AZ1)：
Sheet, Book,
Document Feeder media weight :
DADF-BA1：
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)*
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)*
*Only 1-sheet feeding is supported in 38-42 gsm. (Feeding is guaranteed but geometric distortion correction is not guaranteed)
DADF-AZ1：
1-sided scanning: 38 to 128 gsm (BW/CL)*
2-sided scanning: 38 to 128 gsm (BW/CL)*
*Only 1-sheet feeding is supported in 38-52 and 105-128 gsm. (Feeding is guaranteed but geometric distortion correction is not guaranteed)

Supported media sizes

Platen: max. scanning size: 297.0 x 431.8 mm
Document Feeder media size:
DADF-BA1: A3, A4, A4R, A5, A5R, B5, B5R, B6, B4R
Custom size: 128.0 x 139.7 mm to 297.0 x 431.8 mm
DADF-AZ1：
A3, A4, A4R, A5, A5R, B5, B5R, B4R
Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm

Scan Speed (ipm: BW/CL; A4)

DADF-BA1：
1-sided Scanning: 55/55 (300 dpi), 45 (BW; 600 dpi)
2-sided Scanning: 27.5/27.5 (300 dpi), 22.5 (BW; 600 dpi)
DADF-AZ1：
1-sided Scanning: 35/25 (300 dpi), 25 (BW; 600 dpi)
2-sided Scanning: 12/8 (300 dpi), 8 (BW; 600 dpi)

Scan Resolution (dpi)

Copy: 600 x 600
Send: (Push) up to 600 x 600, (Pull) up to 600 x 600
Fax: up to 600 x 600

Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 7/8.1/10
Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016

Scan Method

Send functionality available on all models
Scan to USB Memory Key: Available on all models
Scan to Mobile Devices and cloud-based services: A range of solutions is available to provide scanning to mobile devices or cloud-based services depending on your requirements. Please contact your sales representative for further information.
TWAIN/WIA Pull scanning available on all models

Send Specifications
Destination
E-mail/Internet FAX (SMTP), SMB, FTP, WebDAV, Super G3 FAX (Optional)

Address book
LDAP (2,000)/Local (1,600)/Speed dial (200)

Send resolution (dpi)

Push: 600 x 600
Pull: 600 x 600, 400 x 400, 300 x 300, 200 x 200, 150 x 150, 100 x 100, 75 x 75

Communication protocol

File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
E-mail/I-Fax: SMTP (send), POP3 (receive)

File Format

Standard: TIFF (MMR), JPEG*, PDF (Compact, Searchable, PDF A/1-b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word)
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)
*Single page only

Universal Send Features
Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Sender’s Name (TTI), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

Fax Specifications
Optional / Standard
Optional on all models

CANON IMAGERUNNER 2630I MULTIFUNCTION PRINTER + DADF-AZ1 DOCUMENT FEEDER

Maximum Number of Connection Lines
4

Modem Speed

Super G3: 33.6 kbps
G3: 14.4 kbps

Compression Method
MH, MR, MMR, JBIG

Resolution (dpi)
400 x 400 (ultrafine), 200 x 400 (superfine), 200 x 200 (fine/photo), 200 x 100 (normal)

Sending/Recording Size

A3, A4, A4R, A5*1, A5R*1, B4, B5*2, B5R*1
*1 Sent as A4
*2 Sent as B4

FAX memory
Up to 30,000 pages

Speed dials
Max. 200

Group dials/destinations
Max. 199 dials

Sequential broadcast
Max. 256 addresses

Memory backup
Yes

Fax Features
Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density (for Scanning), Sharpness, Erase Frame, Job Build, Sender’s Name (TTI), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report

Store Specifications
Memory Media
Standard: USB Memory

Security Specifications
Authentication

Standard: Universal Login Manager (Device and Function Level Log-in), uniFLOW Online Express*, User Authentication, Department ID Authentication, Access Management System
Optional: My Print Anywhere secure print (Requires uniFLOW), Picture Login
* No charge for this solution; however activation is required.

Data
Optional: Data Loss Prevention (Requires uniFLOW)

Network
Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME

Document

Standard: Secure Print, Encrypted PDF, Encrypted Secure Print, Device signature
Optional: User signature

Environmental Specifications
Operating Environment

Temperature: 10 to 30 ºC (50 to 86 ºF)
Humidity: 20 to 80 % RH (Relative Humidity)

Power Source
220-240 V , 50/60 Hz , 5.2 Amp

Plug (Main Unit)
CEE7/7

Power Consumption

Maximum: Approx. 1500W
Standby: Approx. 20W
Sleep mode: Approx. 1.0 W
Plugin Off:
Approx. 0.4W
Typical Electricity Consumption (TEC)* :
iR 2645i: 0.69 kWh
iR 2630i: 0.45 kWh
iR 2625i: 0.38 kWh
*As per US ENERGY STAR® version 3.0

Noise levels (BW/CL)

Sound Power Level (LwAd)
Active:
iR 2645i:73.1 dB or Less*1
iR 2630i:71.0 dB or Less*1
iR 2625i:70.2 dB or Less*1
Standby: No noise*2
No noise means that the emission sound pressure level of each bystander
position is lower than the absolute standard with the background noise of
ISO 7779.
Sound Pressure Level (LpAm)*2
Bystander’s position:
Active:
iR 2645i: 1-sided: LpAm 52 dB, 2-sided: LpAm 55 dB
iR 2630i: 1-sided: LpAm 50 dB, 2-sided: LpAm 53 dB
iR 2625i: 1-sided: LpAm 50 dB, 2-sided: LpAm 52 dB
Standby: No noise*2
No noise means that the emission sound pressure level of each bystander
position is lower than the absolute standard with the background noise of ISO 7779.
*1 RAL-UZ205(2017) compliant (Data taken from Blue Angel Standard value)
*2 Reference value: measured only one unit with ISO7779, described with ISO9296:2017

Standards
Blue Angel

Consumables
Toner Cartridge/s
C-EXV 59 Toner Black

Toner (Estimated Yield @6% Coverage)
Black: 30,000 impressions (A4)

Software and Printer management
Tracking and reporting

Universal Login Manager (ULM):
Manage your costs easily by using the embedded reporting capability to identify and control costs on a user-based level by device.
uniFLOW Online Express*: Combining with ULM you can gain further control and highlight expenditures per users/department and pinpoint where costs can be scaled down from a central cloud based location.
*Installation, activation and registration required

Remote management tools

iW Management Console:
Server-based software for centralised management of a fleet of devices (includes monitoring or consumables, status monitoring and alerts, distribution of address books, configuration settings, firmware applications, meter capture and reporting, driver and resource management)
eMaintenance:
Compatible with eMaintenance services via embedded RDS (Enables meter capture, automatic consumables management, remote diagnostics and reporting for service providers to offer efficient, fast and proactive maintenance)
Content Delivery System:
Allows the Remote distribution of firmware, iR options; Remote User Interface (RUI) Web based interface to each device that helps to provide remote device management and control

Scanning software

Network ScanGear:
TWAIN-compliant scanner driver that enables computers on a network to use the pull scan functionality of the device

Paper Supply options
CASSETTE FEEDING UNIT-AN1

Paper Capacity: 550 sheets x 2 (80 gsm)
Paper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched
Paper Size: A3, A4, A4R, A5R, B4, B5, B5R,
Custom size: 139.7 x 182.0 to 297.0 x 431.8 mm
Paper Weight: 60 to 220 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 650 x 248 mm (attached to the main unit)
Weight: Approx. 23.5 kg

Output Options
INNER 2-WAY TRAY-L1
Allows the separation of copies, prints and faxes. Adds a second internal output tray to give a combined output capacity of 350 sheets (upper tray 100 sheets/lower tray 250 sheets).

INNER FINISHER-J1 (Internal)

Number of Trays: 2
Upper Tray Capacity*: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 45 sheets
Lower Tray Capacity*: A4, A5, A5R, B5: 500 sheets;
A3, A4R, B4, B5R: 250 sheets;
A6R: 30 sheets
* with 81.4 gsm paper
Paper Weight: 52 to 220 gsm
Staple Position: Corner, Double
Staple Capacity: Corner and Double Stapling:
B5: 50 sheets (52 to 90 gsm)
A3/A4R/B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3/A4/B4/B5: 5 sheets (52 to 64 gsm)
4 sheets (65 to 81.4 gsm)
3 sheets (81.5 to 105 gsm)
Staple On Demand:
40 sheets (80 gsm)
Dimensions (W x D x H): 604 x 535 x 205 mm (when the extension tray is extended)
Weight: Approx. 7.3 kg

Hardware Accessories
Card Readers

COPY CARD READER-F1 – Magnetic physical card access system. (Integrates with Department ID, not for use with uniFLOW)
IC Card Reader Box-C2
COPY CARD READER ATTACHMENT-H3 – Attachment kit for Copy Card Reader-F1 only.

Others

CASSETTE LOCK TYPE-F1 – Security accessory which protects the cassette trays from being opened (Available in selected markets only)
PLATEN COVER TYPE Z
DADF-AZ1

Data Security
Picture Login-A1

System and Controller options
Print Accessories

PCL INTERNATIONAL FONT SET-A1 – Adds PCL support for Andalé Mono WT J/K/S/T (Japanese/Korean/Simplified Chinese/Traditional Chinese).
PS PRINTER KIT-BT1- Provides networked printing support for Adobe PostScript 3 printing.

Barcode Printing
BARCODE PRINTING KIT-D1 – Provides the ability to print 1D and 2D barcodes on output using jet caps technology.

System Accessories
COPY CONTROL INTERFACE KIT-D1: Allows connection (CCVI I/F) between 3rd party copy control terminal and Canon’s iR-ADV range for cost recovery use.

Fax Accessories

SUPER G3 FAX BOARD-AV2
REMOTE FAX KIT-A1 – Enables the device to send and receive fax from another device connected with a fax board.

Other Options
Accessibility Accessories
ADF ACCESS HANDLE-A1 – Attaches to the document feeder, making access easier for seated users.

Staple Cartridge
STAPLE-P1 – For stapling (2 x 5,000 pcs)

CANON IMAGERUNNER 2630I MULTIFUNCTION PRINTER + DADF-AZ1 DOCUMENT FEEDER
