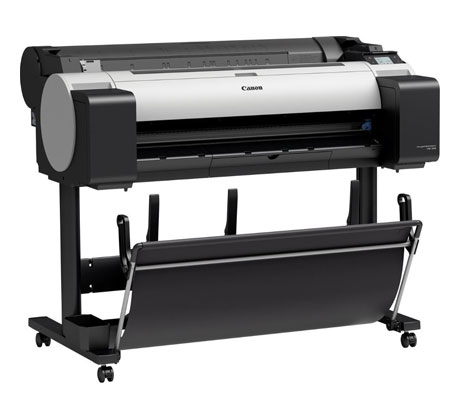

Canon plotter tm 300

Printer Type
5 Colour 36″/914mm

Print Technology
Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

Number of Nozzles
15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)

Line Accuracy
±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only

Canon plotter tm 300

Nozzle Pitch
1,200 dpi (2 lines)

Ink Droplet Size
minimum 5 pl per colour

Ink Capacity
Sales Ink: 130ml/300ml
Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)

Ink Type
Pigment inks – Black, Matte Black, Cyan, Magenta, Yellow

OS Compatability
Microsoft Windows 32 Bit: Windows 7, 8.1, 10,
64 Bit: Windows 7, 8.1, 10, Server 2008R2, Server 2012/2012R2, Server 2016
Apple Macintosh: OS X 10.10.5 ~ OS X 10.11, macOS 10.13

Printer Languages
SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)

Standard Interfaces
USB B Port: Built-in Hi-Speed USB
Ethernet: IEEE 802.3 10-base-T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN

Memory
Standard Memory
2 GB

Hard Drive
N/A

Printing Speed
CAD Drawing
Plain Paper (A0 page size)
0:40 (Fast Economy Mode)
0:46 (Fast)
1:14 (Standard)

Poster
Plain Paper (A0 page size)
0:44 (Fast)
1:18 (Standard)

Coated Paper (A0 page size)
1:41 (Fast)
2:36 (Standard)

Media Handling
Media Feed and Output
Roll paper: One Roll, Upper-loading, Front Output
Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)

Media Width
Roll paper: 203.2 -917 mm
Cut sheet: 203.2 – 917 mm

Media Thickness
Roll/Cut: 0.07 – 0.8 mm

Minimum Printable Length
Roll paper: 203.2 mm
Cut sheet: 279.4 mm

Maximum Printable Length
Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 1.6 m

Maximum Media Roll Diameter
150 mm

Media Core Size
Internal diameter of roll core: 2″/3″

Margins Recommended area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm

Margins Printable area
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut sheet for thers: Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Media Feed Capacity
Manually switchable by user

Borderless Printing Width (Roll Only)
515mm(JIS B2), 728mm(BIS B1), 594mm(ISO A1), 841mm(ISO A0),10″,14″,17″,24″,36″
[Printable]257mm(JIS B4),297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2),8″, 12″, 16″, 20″, 30″, 300mm, 500mm, 600mm, 800mm

Maximum number of delivered prints
Stand/Basket – Standard position: 1 sheet
Stand/Basket – Flat position: 20 sheets on A1, A2 landscape (excludes strong curled condition)

Dimensions and Weight
Physical Dimensions and Weight
Main Unit, Stand and Basket
1289 x 887 x 1060 mm (Basket Open)
1289 x 757 x 1060 mm (Basket Closed)
60 kg (including Roll Holder Set, excluding ink and print head)

Packaged Dimensions and Weight
Printer (Main unit with stand (SD-32) and pallet): 1462 x 913 x 961 mm, 105 kg

Power and Operating Requirements
Power Supply
AC 100-240V (50-60Hz)

Power Consumption
Operation: 69 W or less
Sleep mode: 3.6 W or less
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: 0.3 W or less

Operating Environment
Temperature: 15~30℃,
Humidity: 10~80% RH (no dew condensation)

Accoustic Noise (Power/Pressure)
Operation: 44 dB (A) (Plain paper, line drawing, standard mode)
Standby: 35 dB (A) or less
Operation: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard)

Regulations

Europe: CE mark, Russia: EAC

Certificates

TUV, CB

What’s Included
What’s in the Box?
Printer, printer stand: SD-32, 1 x print head, 3-inch paper core attachment, Power Cable, UK Power cord (240V,3P), 1 set of starter ink tanks, Set up guide, Safety/Standard Environment leaflet
User software CD-ROM (Win)
PosterArtist Lite CD-ROM, EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet

Software Included
imagePROGRAF TM-Series Printer Driver, Print Plug-In for Office, Quick Utility Toolbox and PosterArtist Lite
Other software available as Download from Web.

Options
Optional Items
2/3″ Roll Holder: RH2-35

Consumables

User Replaceable Items
Ink Tank: PFI-120 (130ml), PFI-320 (300ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
